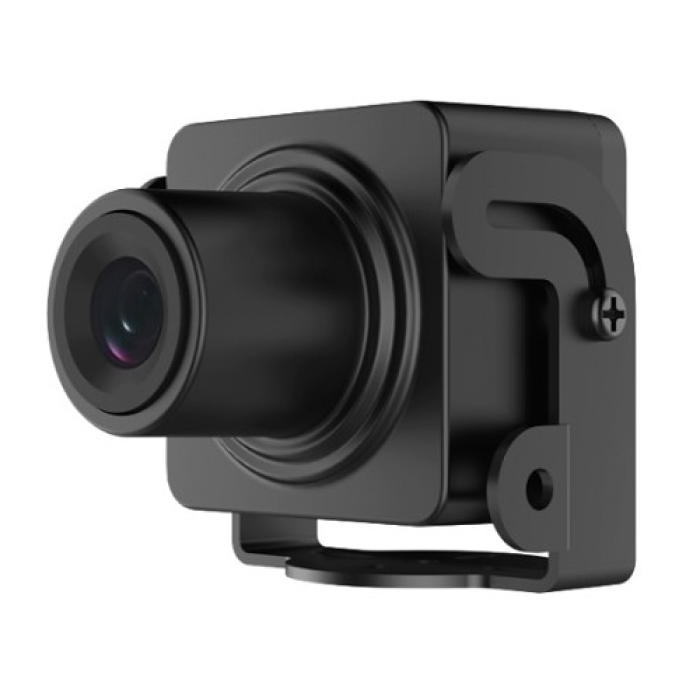

Hikvision NEI-CM2D21 2MP Sabit Mini Box Network IP Kamera
3D DNR/ROI
Support NAS (NFS, SMB/CIFS)
120dB WDR
1/2.7" Progressive Scan CMOS
1920 × 1080@30 fps
H.265+, H.265, H.264+, H.264
6 Behavior analyses, 2 exception detections and face detection
Specifications Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Min.
Illumination
Without /M model:
Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux @ (F2.5, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux @ (F2.5, AGC ON)
With /M model:
Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux @ (F2.0, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Auto-Iris
No
Day & Night
Electronic
Digital Noise Reduction
3D DNR
WDR
120dB Lens
Focal Length
Without /M model: 3.7 mm
With /M model: 2.8 mm, 4 mm
Focus
Fixed
FOV
Without /M model: 3.7 mm
horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 90°
With/M model:
2.8 mm
horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm
horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102.5°
Lens Mount
M12 Compression Standard
Video Compression
H.265/H.264/MJPEG
H.264 Type
Baseline
Profile /Main Profile/High Profile
H.264+
Yes
H.265 Type
Main Profile
H.265+
Yes
Video Bit Rate
32 Kbps
to 8 Mbps
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection
detection, region entrance detection, region exit detection,
unattended baggage detection , object removal detection
Exception Scene change detection, defocus detection
Face Detection
Yes
Region of Interest
Support 1 fixed region for main stream
stream, sub -stream and third stream
Max. Resolution
1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub -Stream
50Hz: 25fps
(704 × 576, 640 × 480, 352 ×
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement
3D DNR
Image Settings
Rotate
Rotate mode, ode, saturation, aturation, brightness, rightness, contrastontrast, sharpness, sharpness adjustable by client software or web adjustable by client software or web browserbrowser
Day/Night Switch
Day/Night
Day/Night/Auto/Auto/Schedule/Schedule Network
Network Storage
Support NAS (NFS,
Support NAS (NFS, SMB/CIFS)SMB/CIFS)
Alarm Trigger
Motion detection
Motion detection, video tvideo tampering, IP address conflict, ampering, IP address conflict, illegal loginillegal login
Protocols
TCP/IP,
TCP/IP, ICMP,ICMP, HTTP,HTTP, HTTPS,HTTPS, FTP,TP, DHCP,DHCP, DNS,DNS, DDNS,DDNS, RTP,RTP, RTSP,RTSP, RTCP,RTCP, PPPoE,PPPoE, NTP,NTP, UPnPUPnP™, SMTP,SMTP, SNMP,SNMP, IGMP,IGMP, 802.1X, QoS,QoS, IPv6IPv6, BonjourBonjour
General Function
General Function
Antinti-flicker, heartbeat, flicker, heartbeat, mirror, mirror, password password protection, privacy mask, wprotection, privacy mask, watermark, IP address filteratermark, IP address filter
API
ONVIF
ONVIF (PROFILE S,(PROFILE S, PROFILE G),PROFILE G), ISAPIISAPI
Simultaneous Live View
Up to
Up to 6 channelschannels
User/
User/Hostost
Up to 32 users
Up to 32 users
3 levels: Administrator, Operator and User
Client
iVMS
iVMS-4200 , HikHik-ConnectConnect, iVMSiVMS-52005200, iVMS, iVMS-4500
Web Browser
IE 8+, Chrome+, Chrome 31.0 -44, Firefox44, Firefox 30.030.0-51, Safari 8.0+51, Safari 8.0+ InterfaceInterface
Audio
Audio
1 input (line in)
Communication Interface
1 RJ45
1 RJ45 10M/ 100M self -adaptive adaptive Ethernet portEthernet port
Reset Button
Yes
Yes General
Operating Conditions
Operating Conditions
-30 °C 30 °C to +to +60 °C (60 °C (-22 °F 22 °F to +to +140 °F), Humidity 95% or less (non140 °F), Humidity 95% or less (non-condensing)condensing)
Power Supply
12 V DC ± DC ± 20%, %, Φ 5.5 mm coaxial plug powercoaxial plug power
Power Consumption
Power Consumption and and Currenturrent
12 V DC , 0.3 A,, 0.3 A, max. max. 3 W
Material
Aluminum luminum Alloylloy
Dimensions
Without /M model: 31 mm
Without /M model: 31 mm × 31 mm × 26 mm ( 1.2 " × 1.2 " × 1" )
With /M model: 31 mm
With /M model: 31 mm × 31 mm × 39 mm ( 1.2 " × 1.2 " × 1.5" )
Weight
With package: approx. 202 g (0.4 lb.)
With package: approx. 202 g (0.4 lb.)
Camera: approx. 93 g (0.2 lb.)
