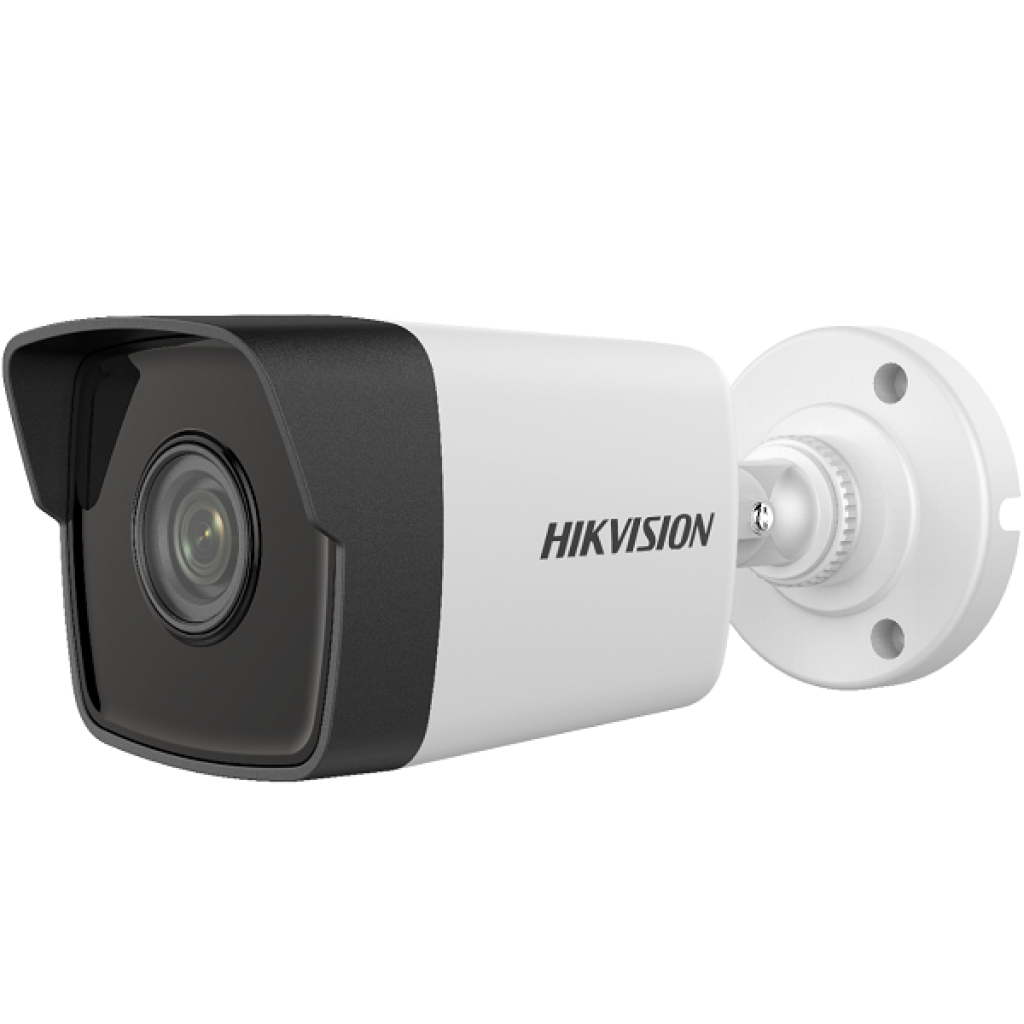

Hikvision NEI-B3021 2MP Akıllı Bullet Network IP Kamera
Key Features
1/2.8" progressive scan CMOS
BLC/3D DNR/HLC
1920 × 1080@30fps
Up to 40 m IR range
2.8 mm/4 mm/6mm fixed lens
IP67
2 Behavior analyses
Three streams
Specification
Camera
Image Sensor
1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Auto-Iris
No
Day &Night
IR cut filter
Digital Noise Reduction
3D DNR
WDR
DWDR
Angle Adjustment (Bracket)
Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360° Lens
Focal length
2.8 mm, 4 mm, 6mm
Aperture
F2.0
Focus
Fixed
FOV
2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°
4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
Lens Mount
M12 IR
IR Range
Up to 40 m
Wavelength
850 nm Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type
Main Profile/High Profile/Baseline Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection
Region of Interest
1 fixed region for main stream Image
Max. Resolution
1920 × 1080
Main Stream
Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
Max. Frame Rate
50Hz: 1fps (352 x 240, 320 x 240)
60Hz: 1fps (352 x 240, 320 x 240)
Image Enhancement
BLC, 3D DNR, HLC
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, scheduled, day, night Network
Alarm Trigger
Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Firmware Version
V5.5.70
API
ONVIF (PROFILE S), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator, and User
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port General
Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.3 A, Max: 3.5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
Protection Level
IP67
Material
Front cover: metal, back cover & bracket: plastic
Dimensions
Camera: Ø 70 mm × 172.7mm (2.8" × 6.8")
With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight
Camera: Approx. 270 g (0.6 lb.)
With package: Approx. 510 g (1.1 lb.)
