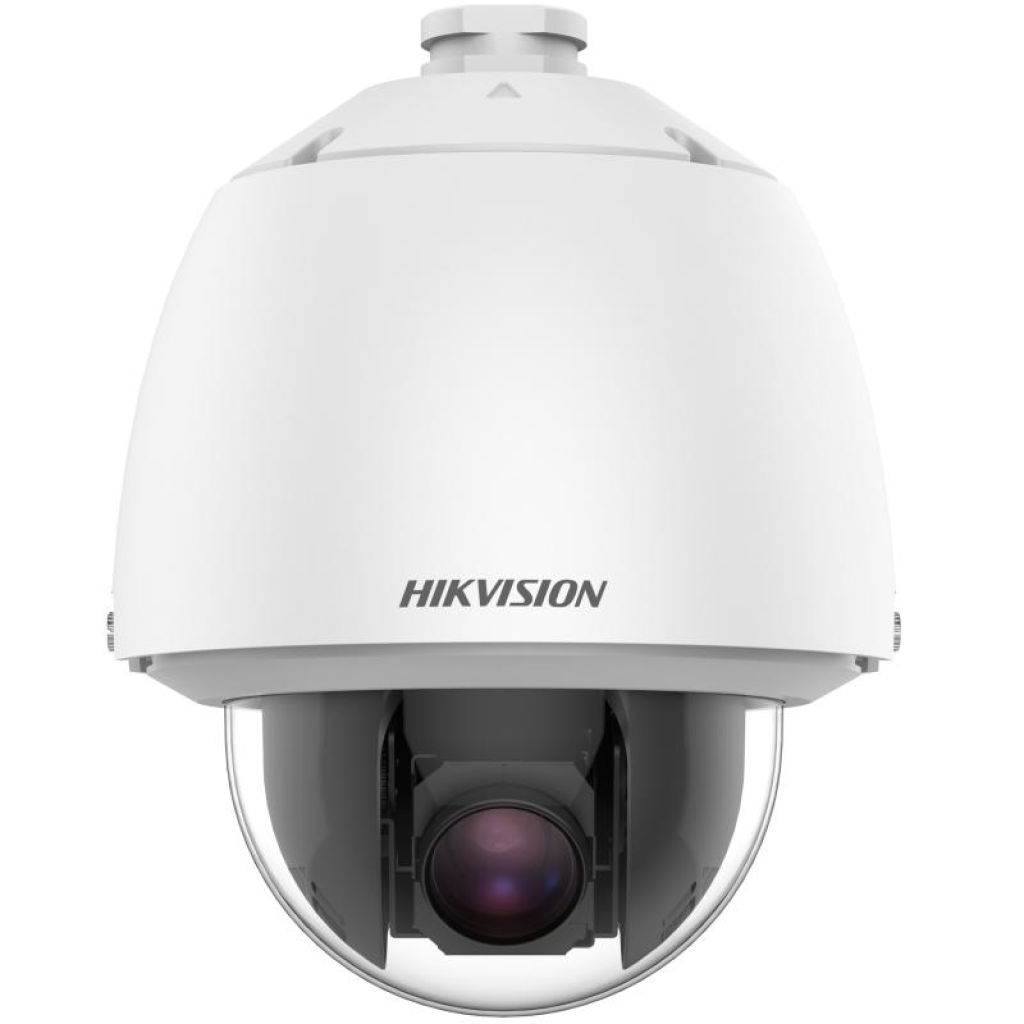

Hikvision AI-SCP532 2MP 32X Akıllı Dome IP Kamera
AI Supported 2MP, H265/H264, IP66 Certified, SSL Secure, up to 60m IR PTZ Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)
- Shutter Speed1 s to 1/30,000 s
- Slow ShutterYes
- Day & NightIR cut filter
- Zoom32x optional, 16x digital
- Max. Resolution 1920 × 1080
Approval EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6000V lightning protection, surge protection and voltage transient protection
General Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Power: 24 VAC, Max. 20 W; PoE (802.3at)
Material: Metal
Dimension: Ø 220 mm × 280 mm (Ø 8.66" × 11.02")
Weight: Approx. 3.0 kg (6.61 lb.)
Event: Smart TrackingManual tracking, auto-tracking
Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
Smart Event: Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Interface Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port On-Board
Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm: 2 inputs, 1 output
Audio:
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Image Day/Night: SwitchDay, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR Wide Dynamic Range (WDR)120 dB
Defog: Digital Defog
Regional Exposure: Yes
Regional Focus: Yes
Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch: Yes Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable SNR＞52 dB Network Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Simultaneous Live ViewUp to 20 channels User/HostUp to 32 users; 3 user levels: administrator, operator, and user SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) ClientiVMS-4200, HikCentral Pro, Hik-Connect Web BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 12+ Audio Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps (PCM) Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering:yes
Video Main Stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type
Baseline profile/Main profile/High profile
H.265 Type: Main profile Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI):8 fixed regions for each stream
PTZ Movement Range: (Pan)360° Movement Range (Tilt)-5° to 90° (auto flip)
Pan: SpeedPan speed: configurable from 0.1° to 250°/s; preset speed: 300°/s
Tilt Speed: Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Proportional Pan: Yes Presets300 Patrol Scan8 patrols, up to 32 presets for each patrol Pattern Scan4 pattern scans Power-Off Memoryyes
Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning: yes
PTZ Status Display: yes
Preset Freezing: yes
Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Lens Focus: Auto, semi-auto, manual
Focal Length: 4.8 mm to 153.6 mm
Zoom Speed: Approx. 4.8 s FOV
Horizontal field of view: 58.9° to 2.4° (wide-tele),
Vertical field of view: 33.6° to 1.4° (wide-tele),
Diagonal field of view: 67.0° to 2.8° (wide-tele)
ApertureMax. F1.6
